Why Subsurface Clarity Is the Foundation of Engineering Design

Engineering Design Begins Below the Surface

Every engineering project—from bridges and roads to energy infrastructure, water management, and environmental remediation—relies on the stability and predictability of the ground beneath it. Subsurface uncertainty is one of the most persistent sources of design risk, schedule delays, and cost overruns.

Traditional boreholes, test pits, and soil samples offer valuable but limited point data. While these methods provide direct physical measurements, they cannot capture lateral variability or identify hidden targets or anomalies of interest between sampling points. As a result, engineers may design based on limited or incomplete information, leading to under- or over-engineered solutions, unexpected soil behavior, or unforeseen groundwater interactions.

Integrated geophysics and geology overcome these limitations by combining continuous, non-invasive measurements with interpretive expertise. This integrated approach produces a comprehensive subsurface model, allowing engineers to make informed decisions with confidence. Beyond cost savings, it strengthens safety, compliance, and sustainability.

The Cost of Incomplete Subsurface Understanding

Subsurface uncertainty is a major contributor to construction project overruns. Hidden voids, variable soils, perched water tables, or buried debris can necessitate redesign, additional materials, or rework, all of which inflate project costs.

Studies support this reality: a World Bank survey of 64 hydroelectric projects found that geological challenges led to major cost overruns in 36% of projects, with civil works costs increasing by an average of more than 65%. Tunneling projects, such as the Channel Tunnel and Olmos Tunnel, have reported overrun rates of 9–78% due to unexpected geological conditions.

By investing in integrated geophysical and geological surveys, engineers reduce these risks. Early detection of anomalies enables proactive design adaptation, precise foundation engineering, and the avoidance of hazardous areas. This predictive approach minimizes surprises, accelerates construction schedules, and reduces unnecessary expenditures.

The Complementary Roles of Geology and Geophysics

Geology: The Interpretive Framework

Geology provides the interpretive context that transforms raw subsurface data into engineering insight. By analyzing stratigraphy, lithology, structural features, and depositional history, geologists can anticipate how the ground is likely to behave under load, during excavation, or in response to changing water levels.

For example:

• Clay-rich soils may consolidate and settle over time, affecting foundation stability.
• Loose sands may be prone to liquefaction or subsidence if groundwater is removed.
• Fractured bedrock may transmit water or compromise load-bearing capacity.

Geology informs geophysical survey planning, method selection, and interpretation. Knowing the likely materials and structures present guides which geophysical methods are most effective, what frequencies or electrode arrays to use, and how to validate anomalies.

Geophysics: The Measurement System

Geophysical methods quantify subsurface physical contrasts, producing continuous datasets that reveal hidden conditions. Key methods include:

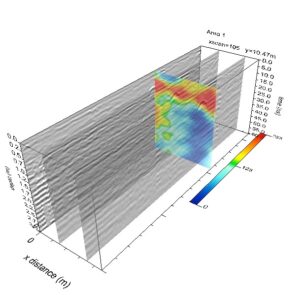

• Ground Penetrating Radar (GPR): Sends electromagnetic waves into the ground; reflections occur at interfaces with contrasting dielectric properties. High-frequency antennas (500–1000 MHz) resolve fine detail at shallow depths (proper for utilities, pavements, and archaeological remains), while low-frequency antennas (50–200 MHz) penetrate deeper to reveal geological layering.

• Electrical Resistivity Imaging (ERI): Applies current through electrodes and measures voltage response to map apparent electrical resistivity variations, revealing features such as subsidence, fractures or faults, groundwater zones, buried fill, or contamination plumes.

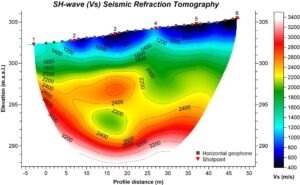

• Seismic Refraction Tomography & MASW (Multichannel Analysis of Surface Waves): Measures the seismic velocity of compressional and shear waves through soils and rock to determine their elastic properties, depth to bedrock, and weak zones.

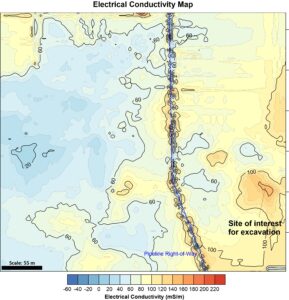

• Electromagnetic (EM) Surveys: Map conductivity over vast areas, ideal for landfill delineation, contaminant plume delineation, agriculture, and shallow groundwater studies.



• Magnetometry: Detects magnetic anomalies, often associated with buried metal objects or archaeological features.



Each method has strengths and limitations. For example, ERI is excellent for measuring electrical resistivity anomalies suggestive of water-bearing materials, but less precise for resolving very thin layers; GPR provides high resolution but attenuates quickly in conductive materials such as clay-rich soils or saturated materials in general. Integrating multiple methods mitigates these limitations.

Integration: From Data to Decision

Individual geophysical surveys are powerful, but interpretation without geological context can mislead. For instance, a high-resistivity anomaly might indicate either a boulder, dry sand, or an air-filled void; geology clarifies the likely scenario and its significance.

Integrated analysis produces:

• 3D models of soil and rock layers
• Anomaly identification (i.e., utilities, voids, contamination, variable soils, depth to bedrock)
• Groundwater mapping
• Zones of potential hazard

These insights guide design choices: foundation type, excavation approach, dewatering strategy, slope stabilization, and material selection. They reduce uncertainty, prevent rework, and optimize project budgets.

Common engineering challenges revealed by subsurface investigation
